Bobcat™ Single Point Modules

Our Bobcat™ modules are single point modules with the sensors (temperature, humidity, etc.) already connected, eliminating the need to discretely hardwire sensors. Simply connect the Bobcat™ to the Ocelot™ or Leopard™ II, set the address and add the code in your C-Max© software (or third party software). It’s that easy!

Bobcat™ Temp

The Bobcats™ Temp is a single point module that has the temperature sensor built right into the unit. The  Bobcat™ Temp is available in both Fahrenheit and Celsius. The Fahrenheit sensor has a range of -20ºF to 170ºF. The Celsius sensor has a range of -18ºC to 77ºC

Specifications:

Size:

2.5"L x 1.35"W x 0.6"H
18" Sensor Cable

Power:

9-12 Volts AC or DC, 30 mA.

I/O:

ADNET©: 2 Screw Terminals (up to 14 AWG)
Power: 2 Screw Terminals* (up to 14 AWG)

Click here to download the Bobcat™ Temp manual

Bobcat™ Humidity

The Bobcat™ Humidity is a single point module with humidity sensor built right into the module providing relative humidity readings from 5% to 95% RH. The Bobcat™ Humidity is perfect to help regulate when sprinkler systems should be watering or not. Why water the lawn if it’s raining?

Specifications:

Size:

2.5"L x 1.35"W x 0.6"H

Power:

9-12 Volts AC or DC, 30 mA.

I/O:

ADNET©: 2 Screw Terminals (up to 14 AWG)
Power: 2 Screw Terminals (up to 14 AWG)

Click here to download the Bobcat™ Humidity manual

Bobcat™ Light

The Bobcat™ Light is a single point module with a light sensor built right onto the unit for detecting light level changes from 0 to 10 LUX. Can also be used to detect if a light is on and off.

Specifications:

Size:

2.5"L x 1.35"W x 0.6"H

Power:

9-12 Volts AC or DC, 30 mA.

I/O:

ADNET©: 2 Screw Terminals (up to 14 AWG)
Power: 2 Screw Terminals (up to 14 AWG)

Click here to download the Bobcat™ Light manual

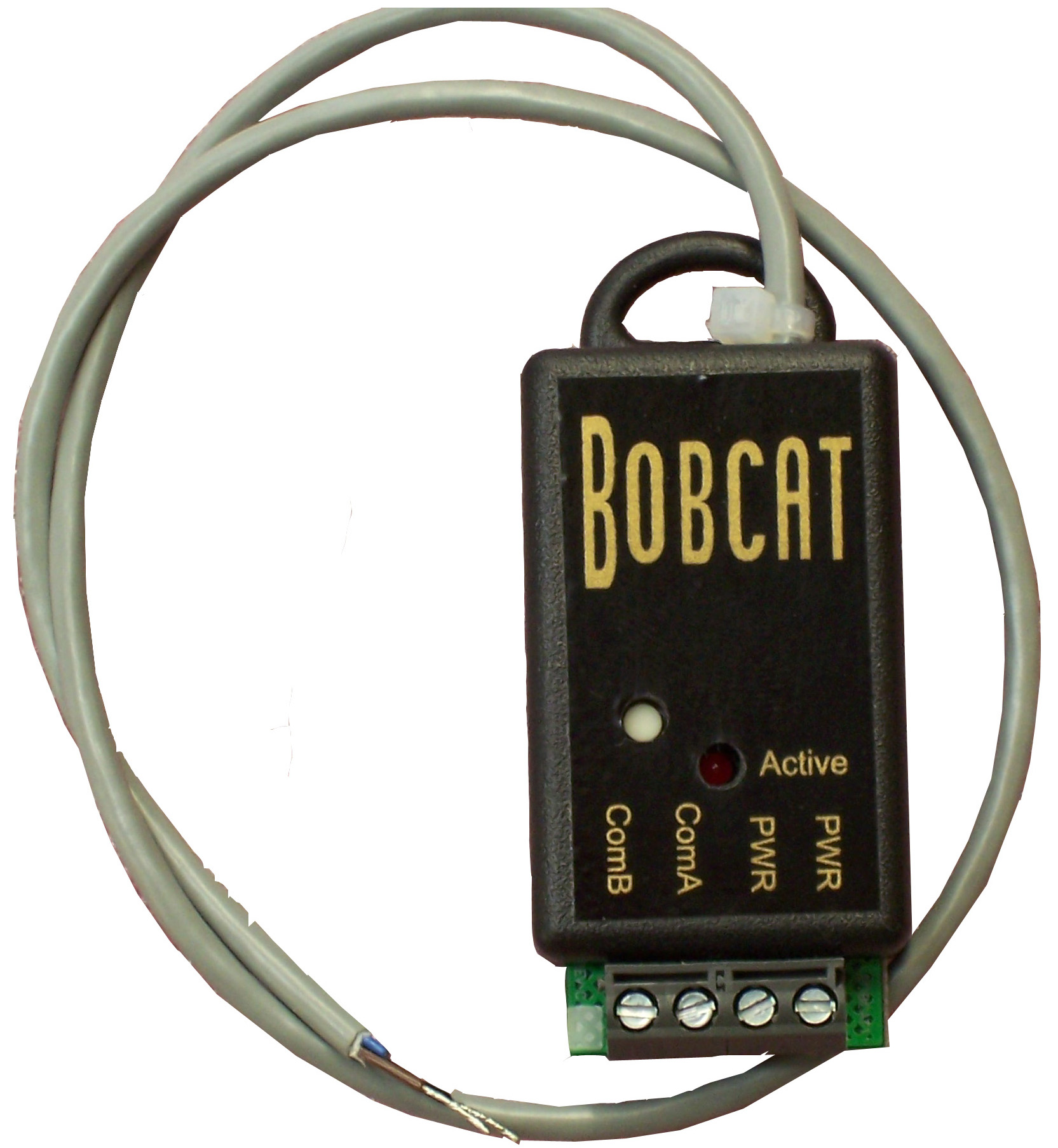

Bobcat™ Contact

The Bobcat™ Contact is a single point module for detecting contact closures such as relays or switches.

Specifications:

Size:

2.5"L x 1.35"W x 0.6"H18" Sensor Cable

Power:

9-12 Volts AC or DC, 30 mA

I/O:

ADNET©: 2 Screw Terminals (up to 14 AWG
Power: 2 Screw Terminals (up to 14 AWG)

Click here to download the Bobcat™ manaul

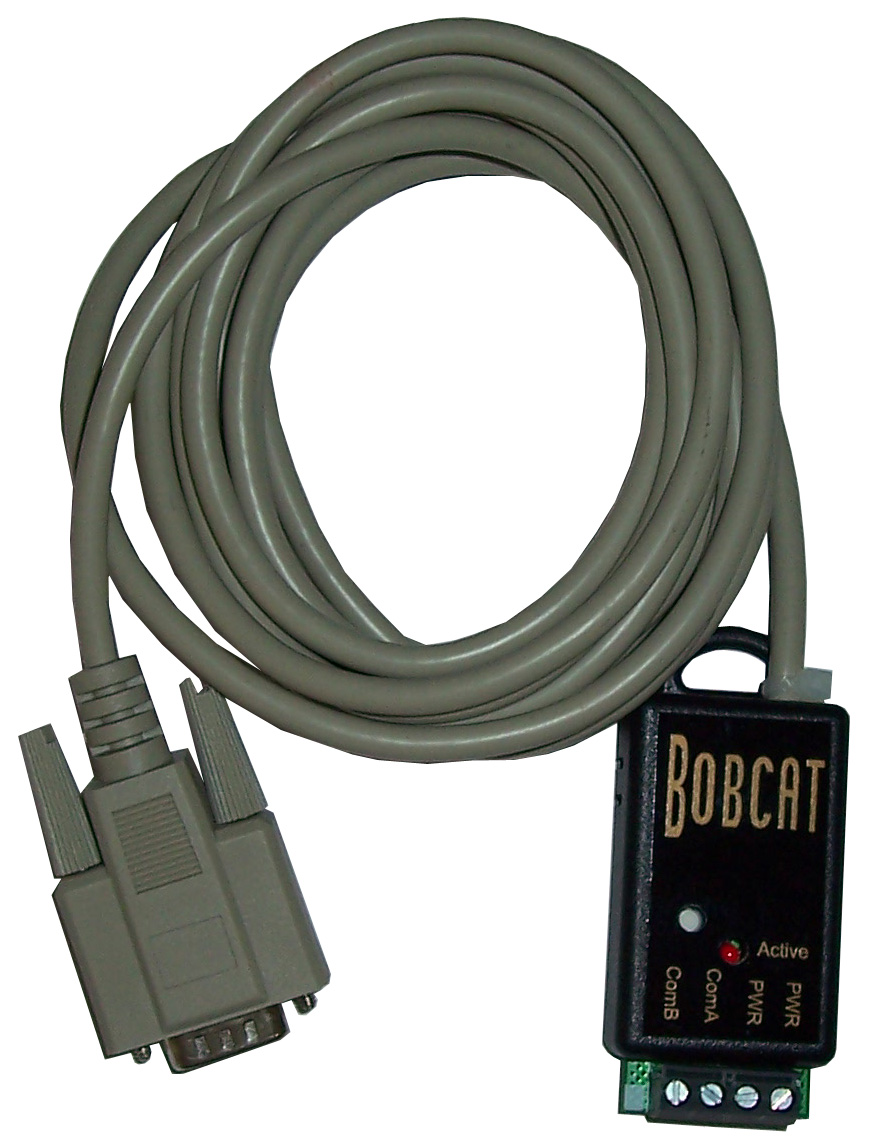

Bobcat™ RS232

The Bobcat™ RS232 provides an interface from the ADICON 2500™ system to serial-controlled devices via RS232. The data transfer is both transmit and receive. Baud rate is selectable from 1200 up to 5700, data bits 7 or 8. Parity is also selectable (none, even or odd). You can send and receive either ASCII or HEX commands. You can even get a Bobcat RS232 with a null modem connection.

Specifications:

Size:

2.5"L x 1.35"W x 0.6"H
6' DB-9 Male Cable (Female if null modem)

Power:

9-12 Volts AC or DC, 30 mA.

I/O:

ADNET©: 2 Screw Terminals (up to 14AWG)
Power: 2 Screw Terminals (up to 14 AWG)
9 pin DB-9 serial connector

ASCII Message Capacity:

128 messages, 32 bytes per message

Click here to download the Bobcat™ RS232 manual

Bobcat™ RS485

The Bobcat™ RS485 provides an interface from the ADICON 2500™ system to serial-controlled devices via RS485. The data transfer is both transmit and receive. Baud rate is selectable from 1200 up to 5700, data bits 7 or 8. Parity is also selectable (none, even or odd). You can send and receive either ASCII or HEX commands.

Specifications:

Size:

2.5"L x 1.35"W x 0.6"H
2 wire cable

Power:

9-12 Volts AC or DC, 30 mA.

I/O:

ADNET©: 2 Screw Terminals (up to 14AWG)
Power: 2 Screw Terminals (up to 14 AWG)
2 Wires

ASCII Message Capacity:

128 messages, 32 bytes per message

Click here to download the Bobcat™ RS485 manual
