SECU-16IR™





Introduction

The SECU-16IR™ module allows 16 zoned IR outputs to be added to an ADICON™ control system.



Specifications

Power:                         Input Voltage                9 - 16V DC or AC

                                    Input Current Max        200mA



Outputs:                       16 IR outputs 3.5mm Mono Jack



Input:                            1 IR Input, 3.5mm Mono Jack, not supported at this time



Dimensions:                  5.5”W x 3.25”L x 1.38”D



Operating

       Temperature:         0ºC to 70ºC








Setup

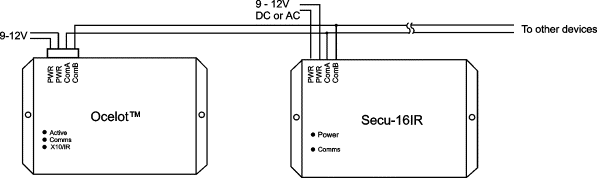

Figure 1. Typical Wiring Diagram







Operation



ADICON™ LED Codes

POWER led – ON solid, Module has power

COMMS led – Slow Blink, 2 sec on  - 1 sec off, valid address

COMMS led – Fast Blink, ½ sec on  - ½ sec off, Auto address mode

COMMS led – Blinks rapidly during ADICON™ communications



Parameter

Function

1

Module Address

Table 1. SECU-16IR™ Parameters

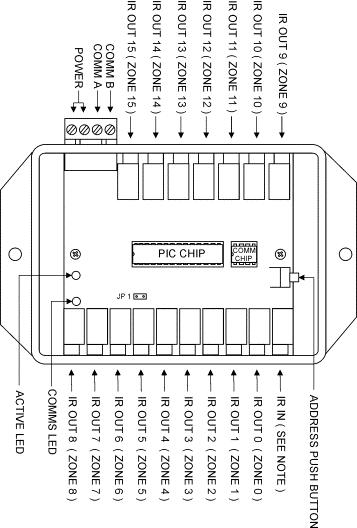

Each output is represented by a zone.  The SECU-16IR™ has 16 output zones, Output 1 is represented by Zone 0, Output 2 is Zone 1, etc.



The example below shows how to send an IR command:
