SECU-16I™









Introduction

The SECU-16I™ module allows 16 inputs to be added to an ADICON™ control system. The inputs may be supervised (switch closure) or analog.



Specifications

Power:                         Input Voltage                9 - 12V DC or AC

                                    Input Current Max        200mA



Inputs:                          16   2-wire inputs, Analog (0 – 5VDC) or Supervised



Dimensions:                  5.5”W x 3.25”L x 1.38”D

Operating

       Temperature:         0ºC to 70ºC








Setup



Remove the SECU-16I™ top cover.

Connect the power supply to the two screw terminals labeled POWER.

Connect the COM A and COM B terminals to the ADICON™ bus (see Figure 1).

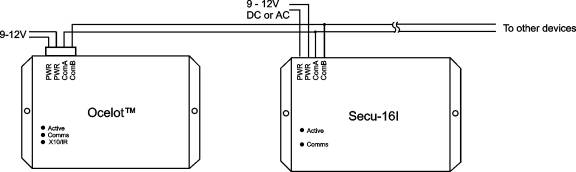

Figure 1. Typical Wiring Diagram



Two types of inputs may be used on the SECU-16I™, supervised and analog.  A supervised input is a passive, non-current supplying input such as a relay or switch.  An analog input provides a varying voltage such as a light sensor.  Input types are controlled in groups of eight as shown in Table 1.



Jumpers JP1 and JP2 control the type if inputs used.

Input Type

Inputs 1 - 8

Inputs 9 - 16

Supervised

JP2 On

JP1 On

Analog

JP2 Off

JP1 Off

Table 1. Jumper Settings

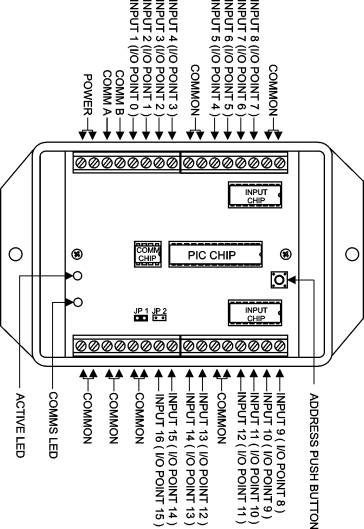

To use an input as a supervised input a 1K Ohm resistor (supplied) must be placed across the input as shown in Figure 2.





Figure 2





Operation



ADICON™ LED Codes

ACTIVE led – Slow Blink, Module has a valid address

ACTIVE led – Rapid Blink, Auto Address mode active

COMMS led – Blinks rapidly during ADICON™ communications



Parameter

Function

1

Module Address

2

Low Analog Threshold

3

High Analog Threshold

10

Analog Value Input 1

11

Analog Value Input 2

12

Analog Value Input 3

13

Analog Value Input 4

14

Analog Value Input 5

15

Analog Value Input 6

16

Analog Value Input 7

17

Analog Value Input 8

18

Analog Value Input 9

19

Analog Value Input 10

20

Analog Value Input 11

21

Analog Value Input 12

22

Analog Value Input 13

23

Analog Value Input 14

24

Analog Value Input 15

25

Analog Value Input 16

Table 2. SECU-16I™ Parameters



Inputs are represented by I/O points within a module.  The SECU-16I™ has 16 I/O points, input 1 is represented by I/O point #0, input 2 is I/O Point #1, etc.



Supervised Inputs



A supervised input is a contact closure input such as a switch or relay.  The SECU-16I™ will report OFF when the switch is open an ON when the switch is closed.  See the example below on using a supervised input.














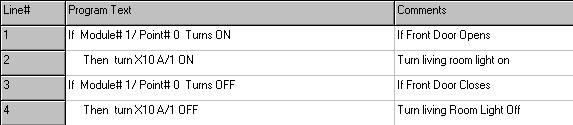

Analog Inputs



Analog inputs are inputs with a voltage that can vary from 0 – 5VDC such as a light sensor.  The SECU16-I™ will read an analog input and compare the value to the low and high threshold parameters.  If the analog value is between the low and high thresholds the SECU16-I™ will report that the input is OFF.  If the analog input value is lower than the low threshold or higher than the high threshold the SECU-16I™ will report that the input is ON.



Setting Threshold Values

Threshold and analog values are determined using the following formula:



To determine the analog reading of an known input voltage:



Analog Reading = Sensor Voltage x (256 / 5) = Sensor Voltage x  51.2



Example: If the analog voltage from a light sensor is 2 volts the analog reading would be

2 x (256/5) =  102



To determine the voltage of an analog reading use:



Voltage =  Analog Reading x (5 / 256) = Analog Reading x 0.01953



Example: If the high threshold is 192 the voltage would be

            192 x 5 / 256 = 3.75V

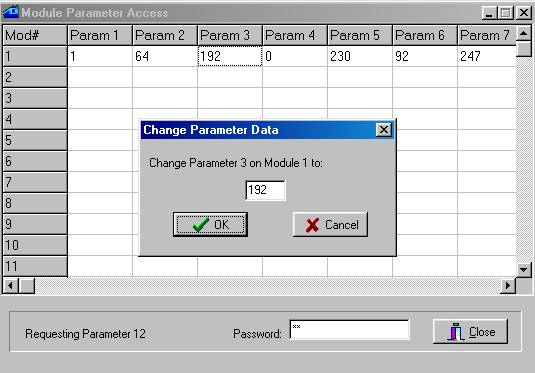

The threshold values are stored in parameters 2 and 3 (see Table 2).  C-Max™ is used to change a parameter value.  Below is a sample screen of the Module parameter utility





The threshold values can also be used to perform reverse logic.  Lets say for example you want an input to be OFF when closed and ON when open, such as a door sensor in a security system.  This can be done by setting the low threshold to 0 and the high threshold to 128.  If you wanted to have the input report OFF when open and ON when closed, set the low threshold to 128 and the high threshold to 255.  This can be done with analog or supervised inputs.



Example of Analog Input: Using a light sensor to turn outside lights on and off

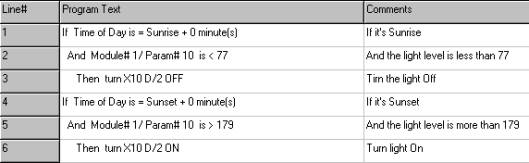

First determine the threshold voltages of when you want the lights to turn on and off.  For our example we will use 1.5V(77) to turn the lights on and 3.5V(179) to turn the lights off.  The code example below shows how to turn the lights off after sunrise only if there is enough light and turn the lights off after dusk when dark enough.  In this example, the more light on the sensor the smaller the analog reading.
